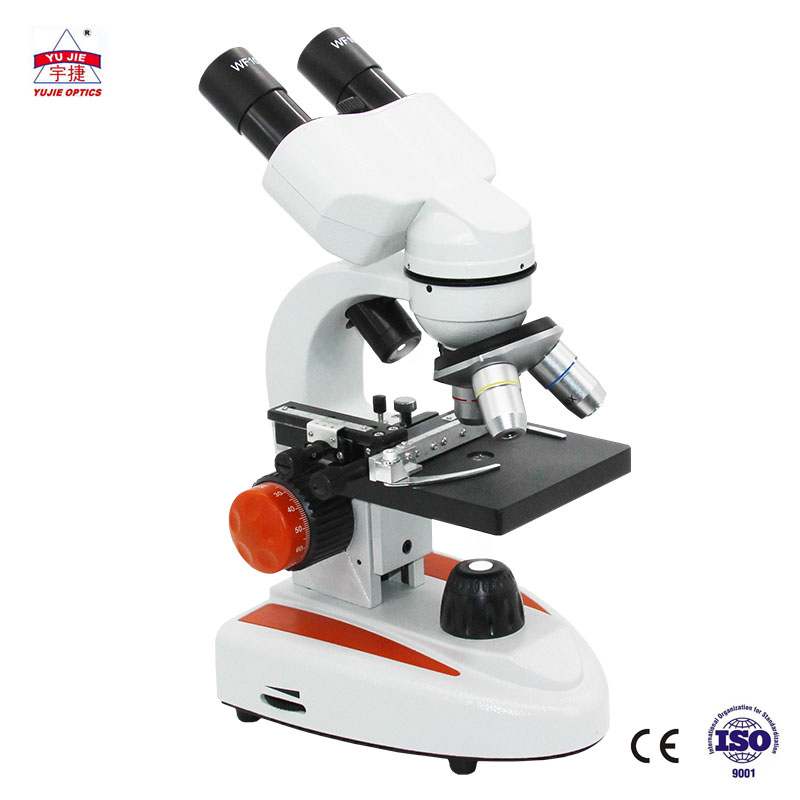

YJ-24B
2024-09-06 16:00:04 Click: 7890
This series microscope is a basic model and high precision instrument designed and produced by our company.It is espcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm,Optional: WF25X；Total Magnification: 40X-1000X |
| Objective | 45mm DIN Achromatic Objectives: 4X,10X,40X(S) |
| Head | Binocular Head, 30°Inclined, 360°Rotatable |
| Stage | Single stage with sliding ruler:95x95cm |
| Condenser | Single Lens Condenser N.A.0.65; six-holes five color filter diaphragm |
| Focusing Adjustment | Coarse and Fine Focusing Adjustable Mechanism: 14mm; |
| Illumination | Top and bottom LED Lamp |
| Net Weight | 1.7KG |
Package
1set/Foam + Inner Carton
4sets/Outer Carton
