YJ-2005DN
2020-01-17 12:17:25 Click: 5619

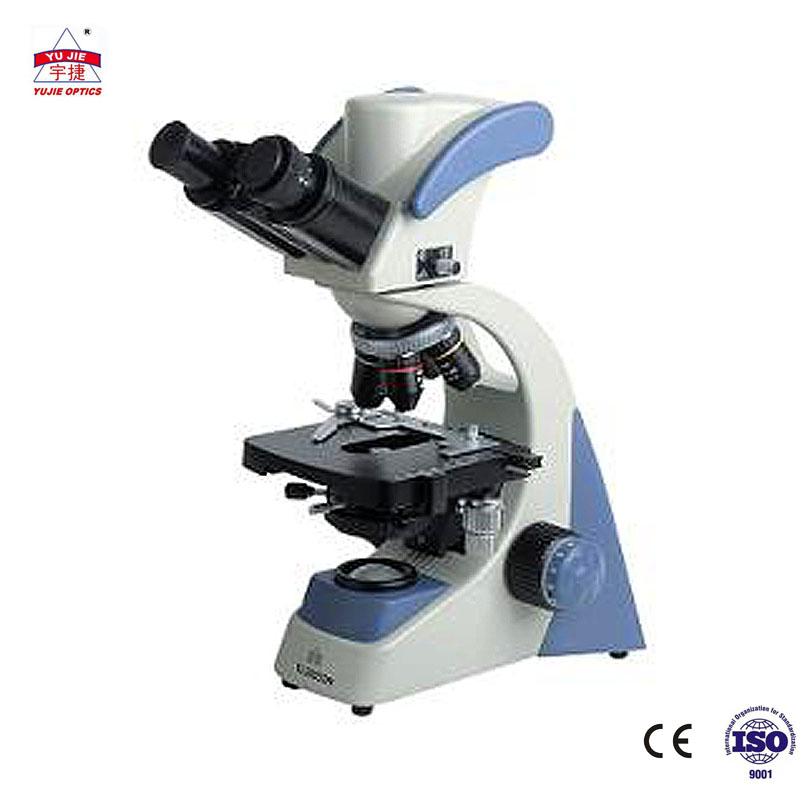

This series microscope is a high precision instrument designed and produced by our company.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is a brand new micro imaging system, with a built-in a USB2.0 color digital camera which has 1.3M Pixal or 3.0M Pixal. It can enable you to obtain any refine information of the micro-image.
Production Description
 |  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X |
| Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil) |
| Camera system | Built-in digital camera system, resolution: 1.3Mp or 3.0Mp, USB2.0 with micro-image process software |
| Head | Articulated Free Trinocular Head, Interpupillary Distance:55-75mm; 30°Inclined, 360°Rotatable |
| Stage | Double Layers Mechanical Stage: 125X125mm, Moving Range X-Y: 60X40mm |
| Condenser | ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter |
| Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm |
| Illumination | Built-in Adjustable Brightness 1W LED lamp |
| Optional | 1.WF10X, WF16X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries |
| Net Weight | 5kg |
Package
1set/Foam + Inner Carton
2sets/Outer Carton, Gross Weight/Carton: 11.2kg
Carton Dimension: 44X37X47cm
