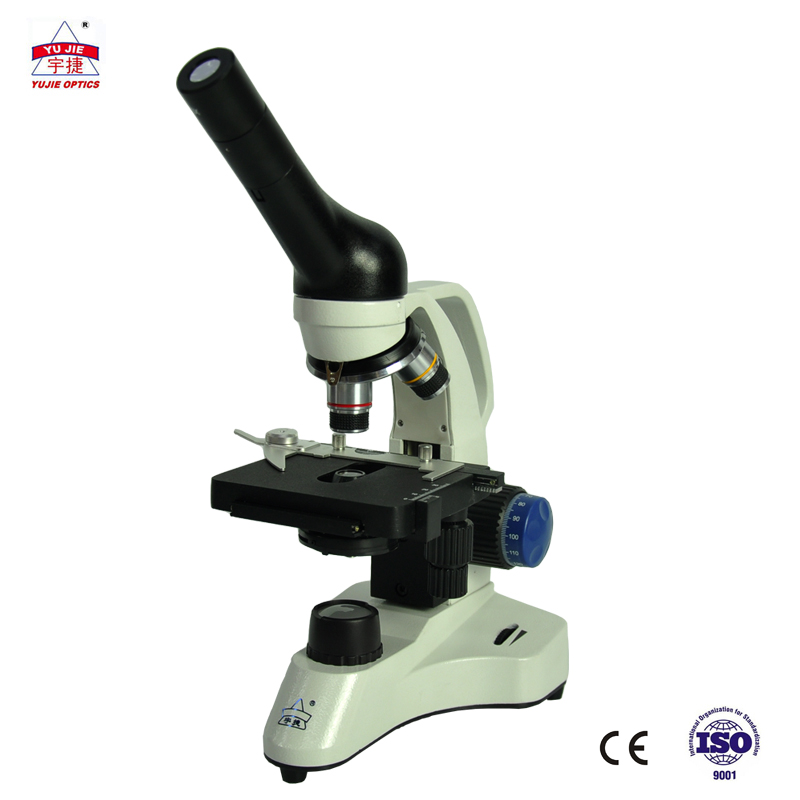

YJ-25B
2020-01-17 12:44:56 Click: 4185
This series microscope is a basic model and high precision instrument designed and produced by our company.It is espcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
 |  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm；Total Magnification: 40X-640X |
| Objective | 45mm DIN Achromatic Objectives: 4X,10X,40X(S) |
| Head | Monocular Head, 45°Inclined, 360°Rotatable |
| Stage | Double Layers Mechanical Stage:95x105cm, Moving range X-Y: 50X20mm |
| Condenser | Single Lens Condenser N.A.0.65; Φ2-Φ30mm Dial Diaphragm |
| Focusing Adjustment | Coarse and Fine Focusing Adjustable Mechanism: 13mm; Precision: 2mm |
| Illumination | 1W LED Lamp |
| Optional | 1.WF16X, WF20X; 2.Rechargeable Batteries |
| Net Weight |
Package
1set/Foam + Inner Carton
4sets/Outer Carton
