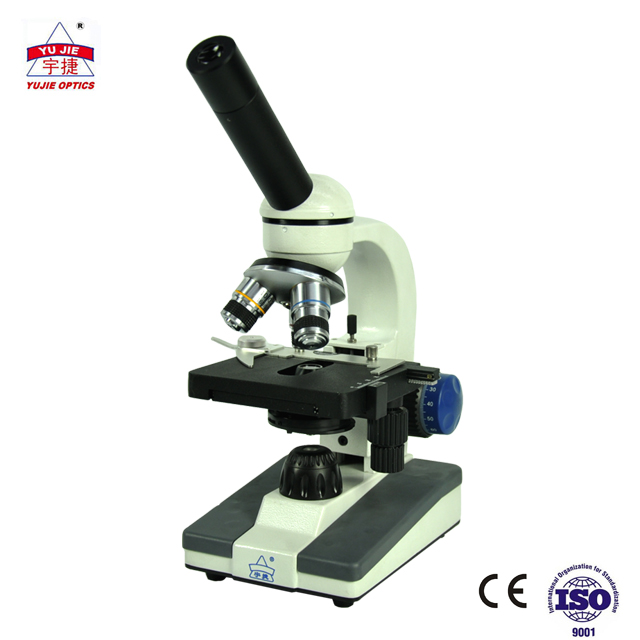

YJ-23A
2024-09-06 15:58:34 Click: 6580
Production Description
 |  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm;Total Magnification: 40X-640X |

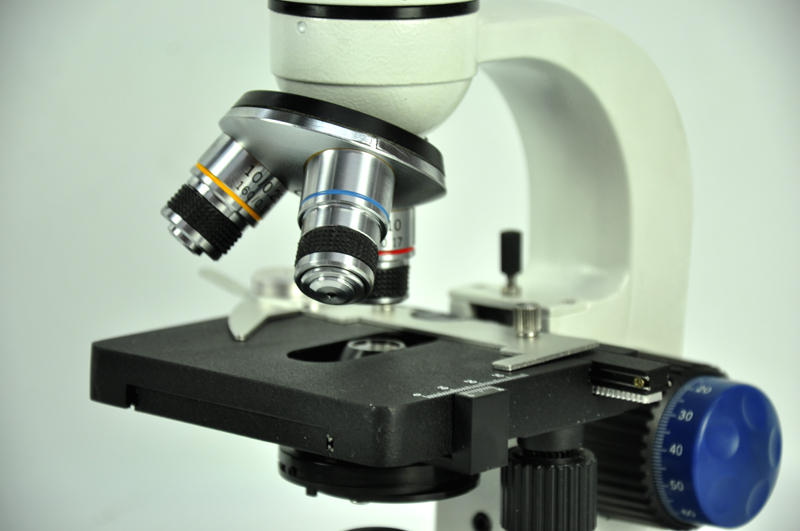

| Objective | Achromatic Objectives: 4X,10X,40X(S) |
| Head | Monocular Head, 45°Inclined, 360°Rotatable |
| Stage | Double layers Mechanical Stage: 95X105mm, moving range: 50X20mm |
| Condenser | Single Lens Condenser: N.A.0.65; Φ2-Φ30mm Iris Diaphragm |
| Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm |
| Illumination | LED Lamp |
| Optional | 1.WF16X, WF20X; 2.Rechargeable Batteries 3.Top LED Lamp |
| Net Weight | 1.5kg |
Package
1set/Foam + Inner Carton
6sets/Outer Carton, Gross Weight: 12KG
Carton Dimension: 55X49X38cm
