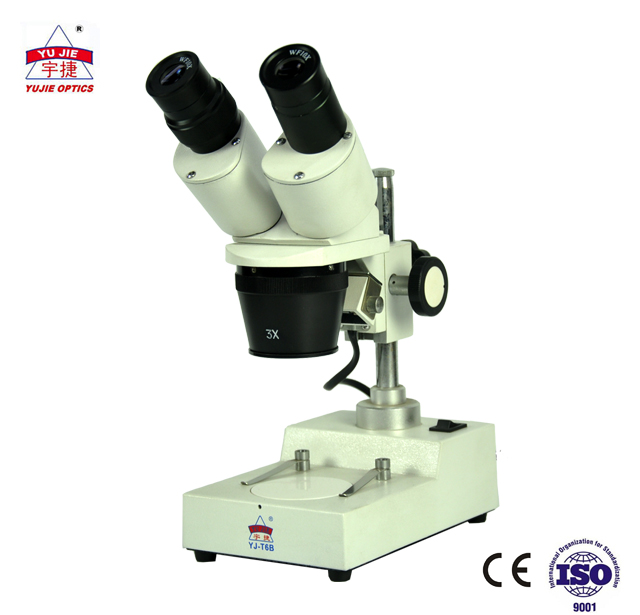

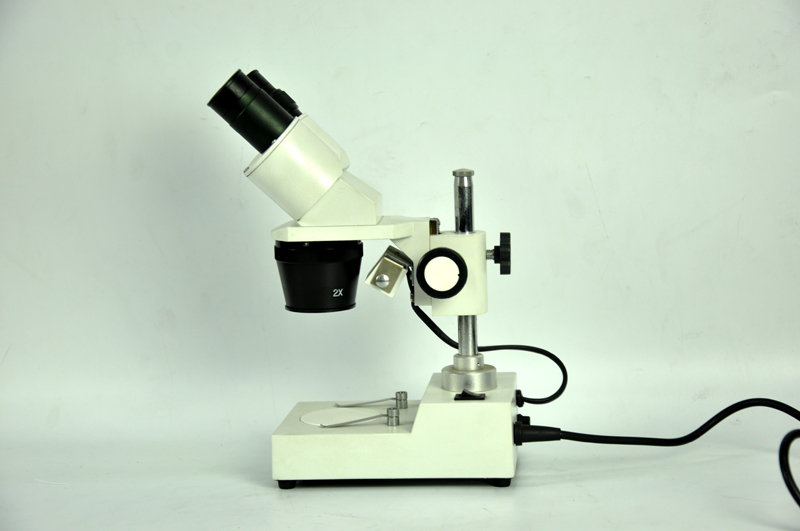

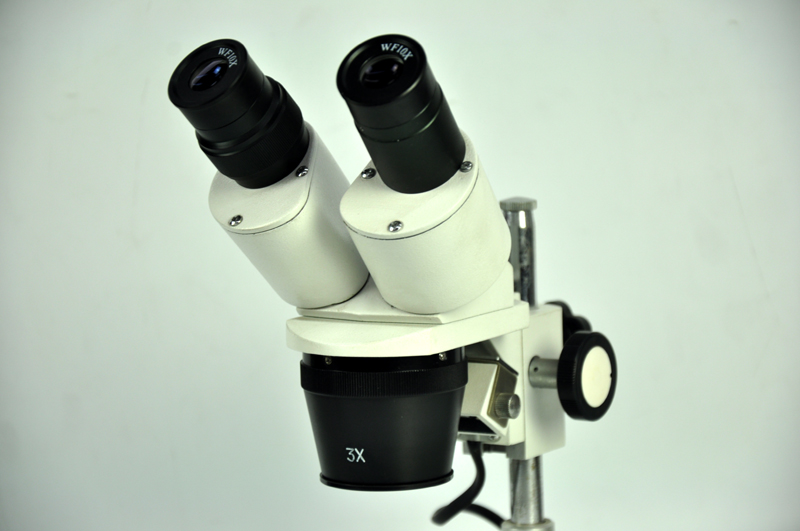

YJ-T6B
2019-04-30 12:18:12 Click: 4027
This series microscope is a basic stereo microcsope with three fixed settings. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | Grouped from Any Three Objectives 1X or 2X or 3X or 4X. Working Distance: 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm |
| Head | Articulated Free Binocular Head, Interpupillary Distance: 55-75mm, 45°Inclined |
| Focusing Adjustment | Rack and Pinion Coarse Focusing Mechanism With Slip Clutch and Tension Adjustment |
| Arm Type | Pole |
| Illumination | Top Light-12V/10W Halogen Lamp and Φ60mm Black-white Reversible Stage Plate( or Top High Light LED lamp) |
| Optional | 1.WF15X, WF20X; |
| Net Weight | 2.2kg |
Package
1set/Foam + Inner Box
4sets/Carton
Gross Weight: 10kg
Carton Dimension: 61X35X36cm
