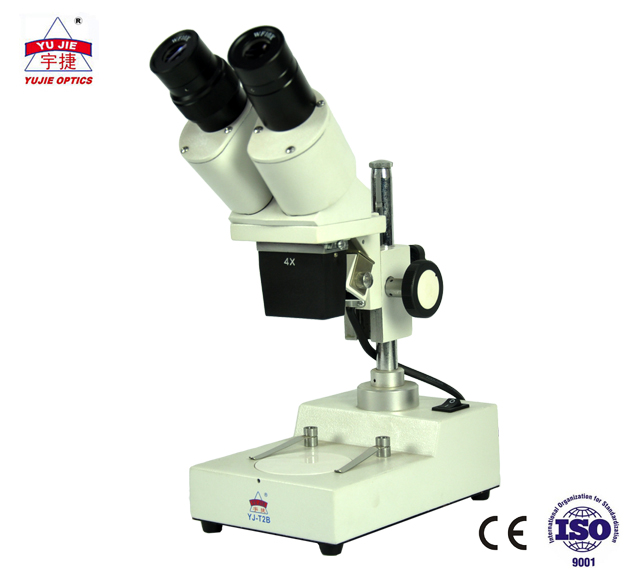

YJ-T2B
2019-04-30 11:53:40 Click: 3850
This series microscope is a basic stereo microcsope with one fixed setting. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | Paired Sliding Objectives 1X or 2X or 3X or 4X for selecting. Working Distance: 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm |
| Magnification | 10X or 20X or 30X or 40X |
| Head | Articulated Free Binocular Head, Interpupillary Distance: 55-75mm, 45°Inclined |
| Focusing Adjustment | Rack and Pinion Coarse Focusing Mechanism With Slip Clutch and Tension Adjustment |
| Arm Type | Pole |
| Illumination | Top Light-12V/10W Halogen Lamp and Φ60mm Black-white Reversible Stage Plate ; High light LED Lamp |
| Optional | 1.WF15X, WF20X; 2.Rechargable LED Lamp |
| Net Weight | 2kg |
Package
1set/Foam + Inner Box
4sets/Carton
Gross Weight: 9.5kg
Carton Dimension: 61X35X36cm
Certificate
|
|
|
|
|
Company Pictures
 |  |
|
 |  |
|
