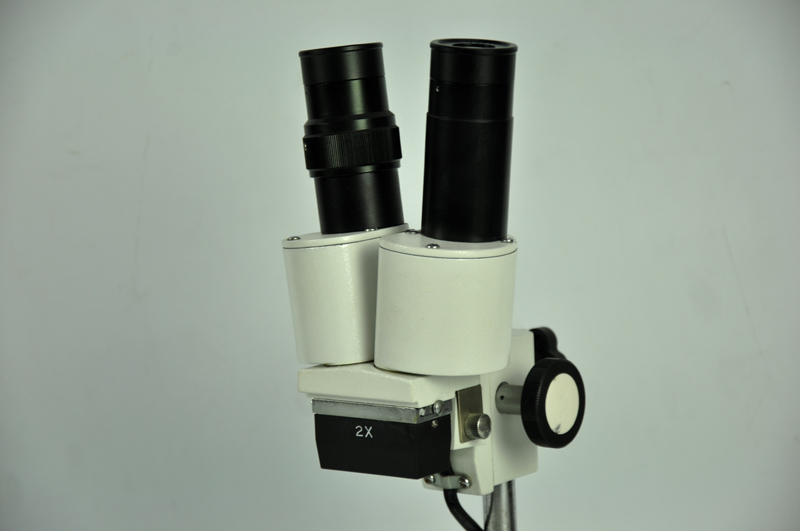

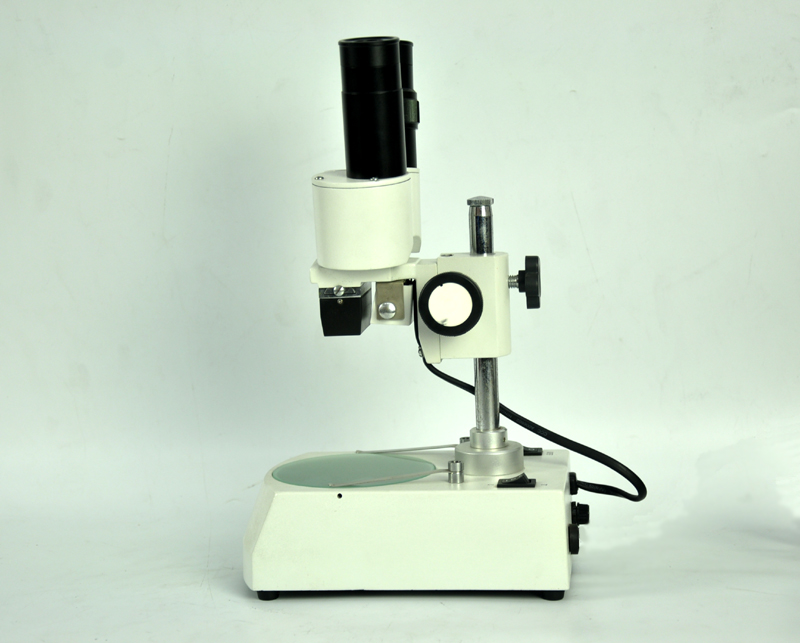

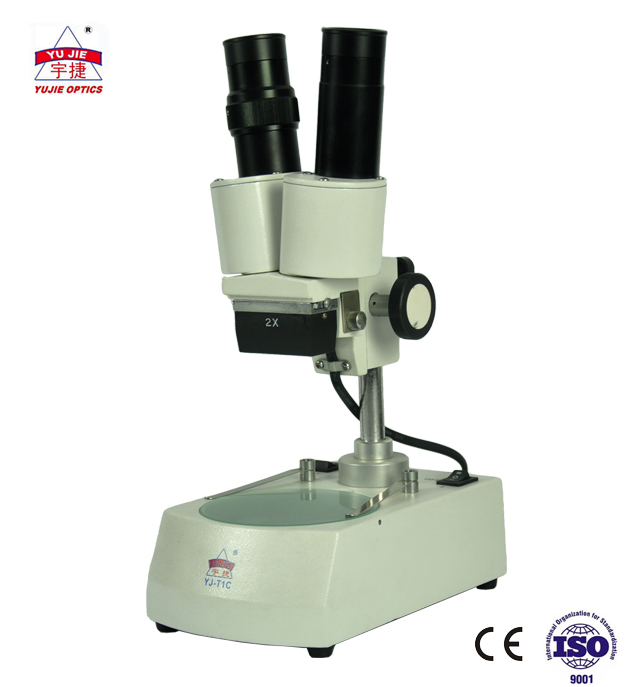

YJ-T1C
2019-04-30 12:25:42 Click: 4111
This series microscope is a basic two-steps fixed stereo microcsope. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | Choose Any One From 1X, 2X, 3X and 4X, Working Distance: 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm |
| Head | Vertical Articulated Free Binocular Head, Interpupillary Distance: 55-75mm |
| Focusing Adjustment | Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque |
| Arm Type | Pole |
| Illumination | Top/Bottom Light 12V/10W Halogen Lamp and Ф95mm Frosted Glass Stage Plate |
| Optional | 1.WF15X, WF20X; 2.LED lamp |
| Net Weight | 2.1kg |
Package
1set/Foam + Inner Box
4sets/Carton
Gross Weight: 10kg
Carton Dimension: 61X35X36cm
