YJ-T102G
2024-02-27 12:42:32 Click: 5432

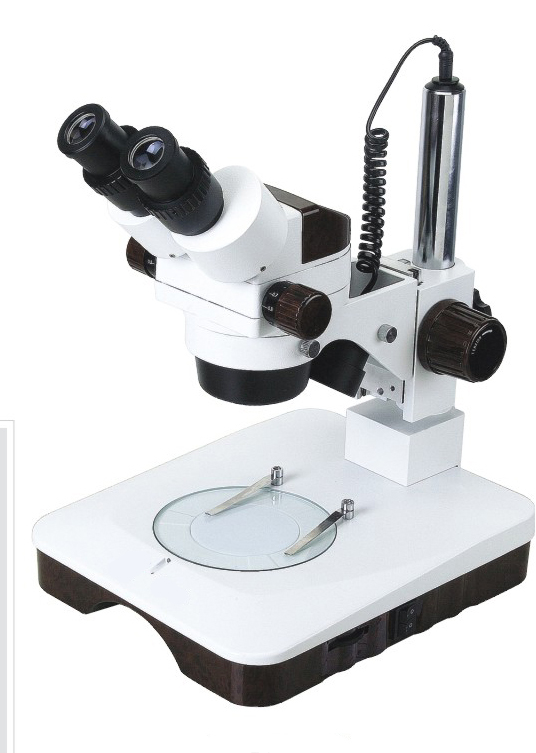

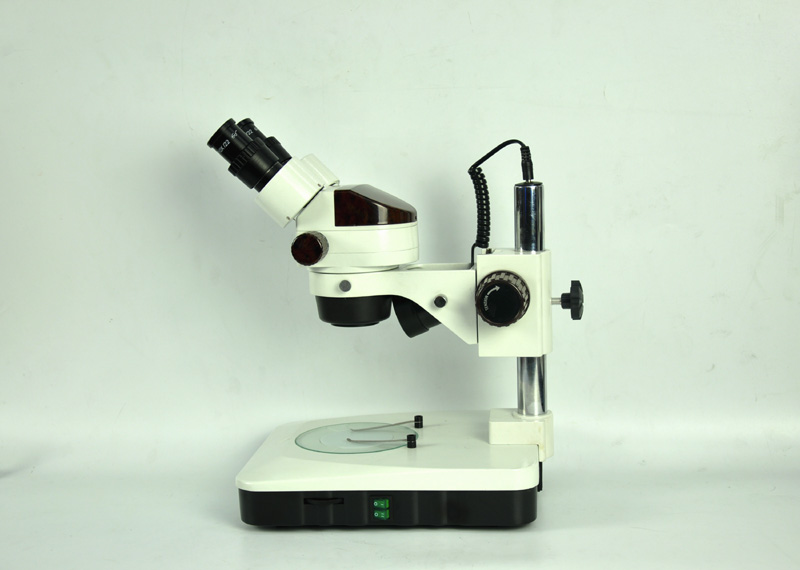

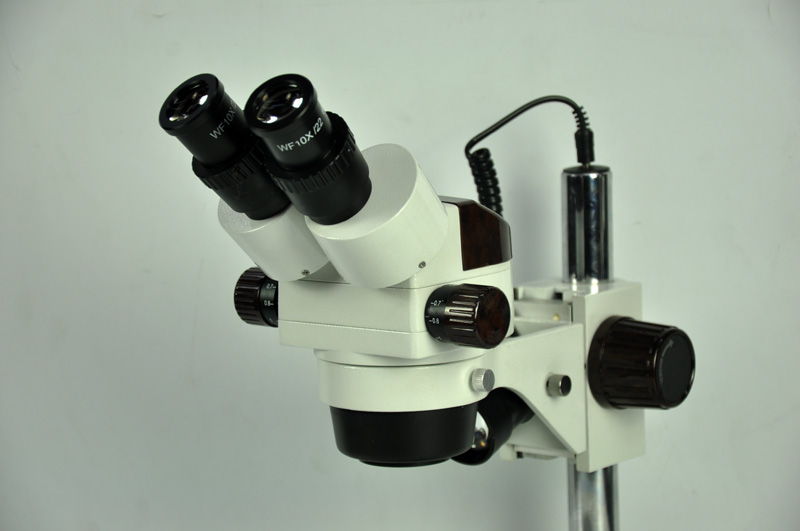

This series microscope is zoom stereo microscope，and it adopts streamline integrated mechanical design. It is with long working distance, large clear range, uniform field, complete accessories, and easy operation. This microscope is used extensively world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/20mm |
| Objective | 0.7X-4.5X |
| Head | Articulated Free Binocular Head, 45°Inclined, 360°Rotatable, Interpupillary Distance:55-75mm, with a diopter adaptor on the left eyepiece tube |
| Working Distance | 100mm |
| Base | 290X245X60mm, with Spring Clips;Ф125mm, one piece of glass(for bottom illumination), one piece of pastic black-white plate (for top illumination) |
| Focusing Adjustment | Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque, Range:85mm |
| Arm Type | Pole, Height: 280mm, Moving Range of the Head Holder: 130mm |
| Illumination | Top and Bottom 3.5V/1W LED light, Light Adjustable Seperately |
| Optional | 1.WF15X, WF20X; 2.Auxiliary Objective: 0.5X, 0.75X, 1.5X, 2X 3.External Ring Light 4.Electronic Eyepiece1.3Mp, 3.0Mp |
| Net Weight | 5kg |
Package
1set/Foam + Carton
Carton Dimension: 42X31X50cm
